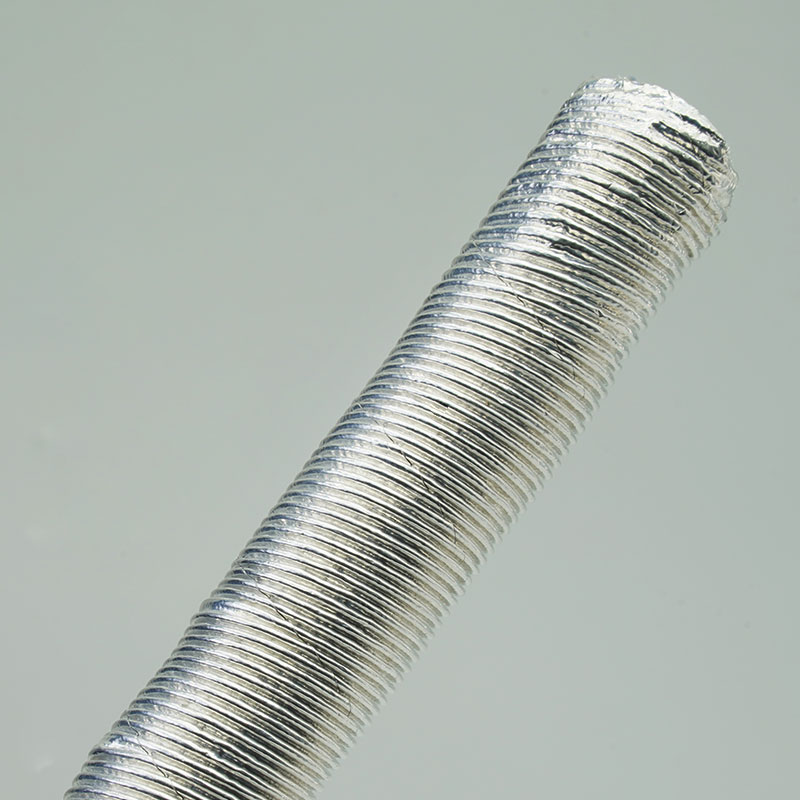

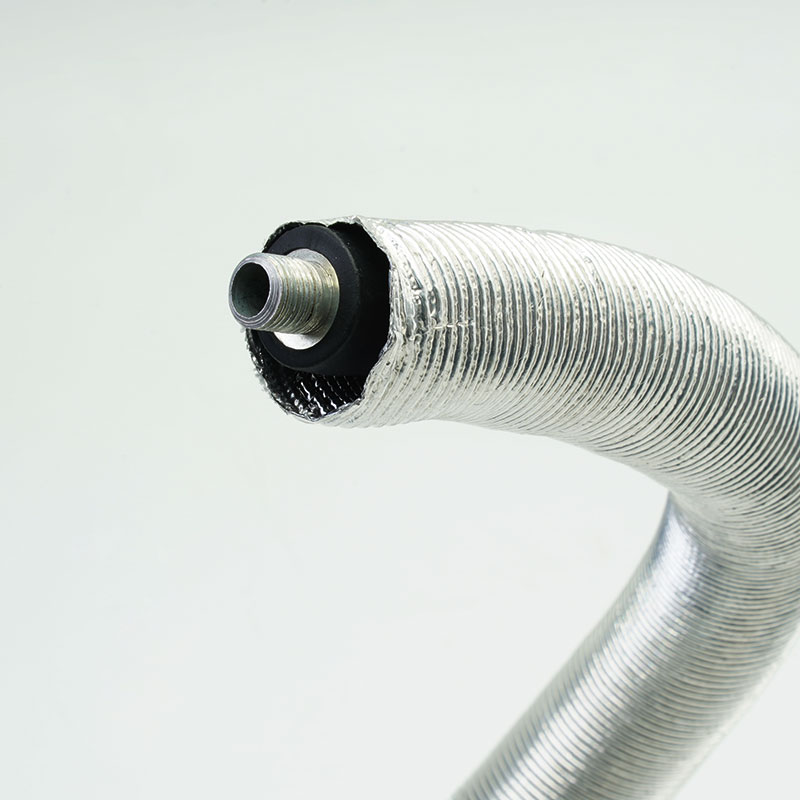

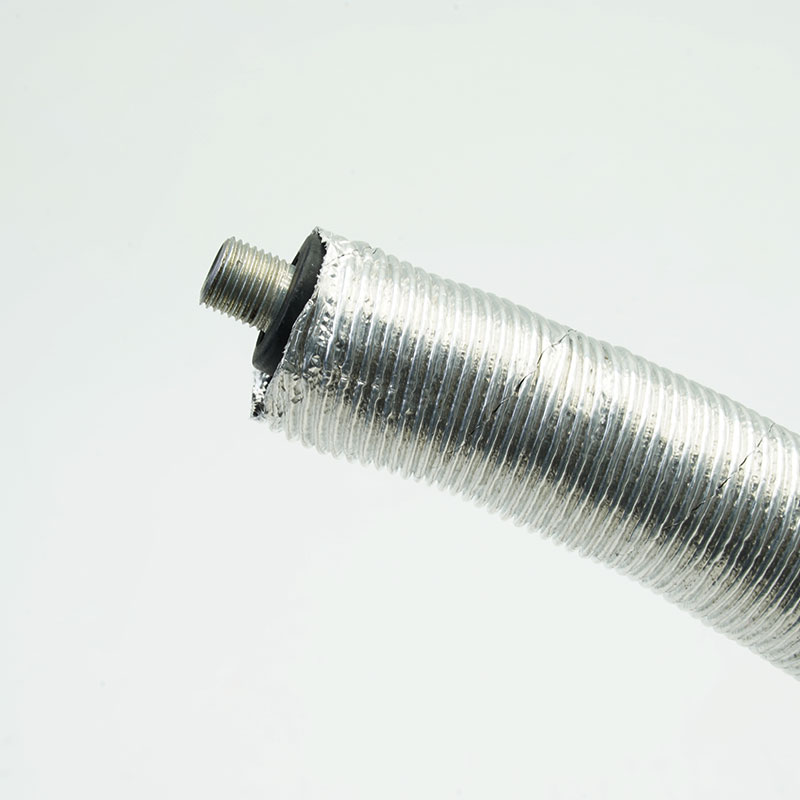

Aluminum Foil Corrugated Heat Shield Wire Loom Tube

• Reflective Heat Protection

The aluminum foil outer layer helps reflect radiant heat and reduce heat exposure to enclosed cables and lines near heat sources.

• Flexible Corrugated Construction

The corrugated design accommodates curved routing paths and equipment layouts, reducing the need for rigid connections.

• Durable Composite Material

Aluminum foil and fiberglass combine thermal resistance, aging resistance and structural stability.

• Environmental Exposure Protection

The construction offers resistance to oil exposure, moisture and certain corrosive environments, subject to service conditions.

• Versatile Pipeline Protection

Suitable for cable protection, flexible pipeline covering, ventilation and flow-guidance applications when operating requirements are met.

• Aluminum Foil Laminated Surface

Reflective laminated outer surface helps reduce radiant heat exposure.

• Fiberglass Reinforced Construction

Fiberglass composite substrate provides thermal resistance and structural support.

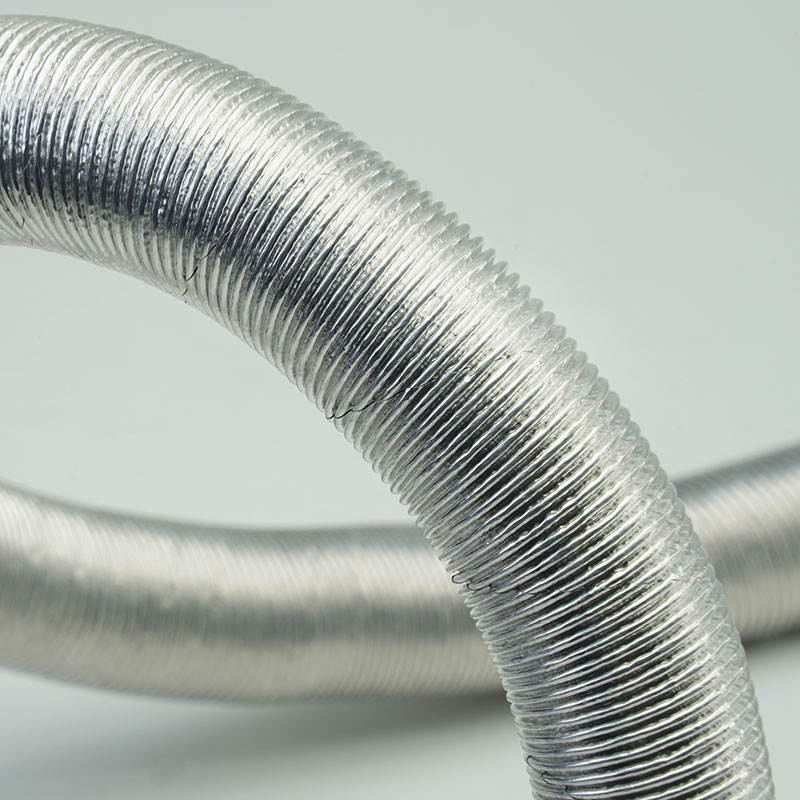

• Flexible and Shapeable Design

Corrugated profile permits bending and shaping along different routes.

• High-Temperature Resistance

Designed for elevated-temperature service and evaluated through specified heat-aging tests.

• Oil and Moisture Resistance

Composite construction offers resistance to oil and moisture exposure in suitable environments.

• Corrugated Tubular Profile

Continuous corrugated tube supports flexible installation and shape adaptability.

• Automotive Heat-Exposed Cable Routing

Helps protect cables near engine-compartment heat sources and hot components from radiant heat exposure.

• Industrial Equipment Wiring

Adds thermal and external mechanical protection for wiring near heat-generating machinery components.

• Flexible Ventilation Ducting

May be used in compatible air-guidance routes subject to airflow, temperature and installation requirements.

• Thermal Equipment Connections

Supports flexible routing around equipment structures and obstructions.

• Industrial Pipeline Protection

External protective covering for compatible industrial lines exposed to heat and routine environmental contact.

Measure the maximum outside diameter of the cable, hose or pipeline, including any section that must pass through the wire loom during installation. Select an inside diameter with enough assembly clearance without excessive looseness.

Check operating temperature, distance from heat sources, routing length, bend radius and exposure to oil or moisture. For ventilation or flow-guidance applications, evaluate airflow, pressure conditions and connection methods. Avoid excessive compression, sharp bends and damage to the laminated structure. Validate critical assemblies under actual operating conditions.

• Sizes & Dimensions - Standard inside diameters of 8–120 mm are available; special sizes may be reviewed for specific projects.

• Cut Lengths - Standard supply is 1 m per piece. Alternative lengths are subject to production feasibility and order quantity.

• Construction Requirements - Wall thickness, flexibility and tube construction may be reviewed for project-specific requirements, subject to technical confirmation.

• Packaging - Product labels, quantity-based packing and customized packaging can be arranged according to order requirements.

• Raw Material Verification - Aluminum foil and fiberglass are checked against approved material and construction requirements.

• Lamination Integrity Control - Composite-layer bonding is checked for delamination, localized separation and material defects.

• Dimensional Inspection - Inside diameter, wall thickness and cut length are checked against approved specifications.

• Surface and Workmanship Inspection - Finished products are checked for damage, excessive wrinkles, contamination, delamination and end defects.

• Final Inspection and Traceability - Part number, dimensions, quantity, packaging and labels are checked before shipment, with batch records maintained as required.
